Lockout-Tagout-Testout (LOTOTO)

LOTOTO (Lockout/Tagout/Tryout) is a critical safety procedure used in various industries to prevent accidents during the maintenance, servicing, or repair of machinery. It isolates energy sources to ensure that machines remain completely de-energized, preventing accidental start-up or release of hazardous energy. LOTOTO is designed to protect workers from injury by controlling hazardous energy sources.

Here’s a detailed overview covering what LOTOTO is, why it’s essential, the tools needed, the procedures involved, its benefits and limitations, and its applications.

1. What Is LOTOTO?

LOTOTO stands for Lockout, Tagout, and Tryout:

Lockout: Physically isolating energy sources using lockout devices (like padlocks) so that machinery or equipment cannot be turned on.
Tagout: Attaching a warning tag to energy-isolating devices to indicate that machinery is off-limits and should not be activated.
Tryout: Verifying that the lockout was successful by attempting to start the machinery (without actually turning it on), confirming that all energy sources have been neutralized.

LOTOTO procedures are governed by regulations, such as OSHA’s Control of Hazardous Energy standard (29 CFR 1910.147), which mandates the practices for safely isolating energy during maintenance.

2. Why Do We Use LOTOTO?

LOTOTO procedures are implemented to:

Prevent Accidental Startup: By isolating energy sources, LOTOTO prevents accidental machine activation, which can cause injury or even fatalities.
Protect Against Hazardous Energy Release: Machinery may contain residual energy that, if released, could injure workers. LOTOTO ensures that such energy is safely dissipated or isolated.
Enhance Worker Safety: LOTOTO is a proactive safety measure that protects workers, maintaining a safer work environment.
Promote Regulatory Compliance: LOTOTO aligns with safety regulations like OSHA standards, ensuring compliance and minimizing potential fines.
Encourage Consistent Safety Practices: By providing a structured process for handling hazardous energy, LOTOTO helps companies establish consistent safety protocols across the organization.

3. Tools and Equipment for LOTOTO

To perform LOTOTO procedures, a variety of specialized tools are needed to lock, tag, and verify machinery isolation. Common LOTOTO tools include:

Padlocks: Unique, durable locks are used to physically secure isolation points and ensure that only authorized personnel can remove them.
Lockout Hasps: Allow multiple padlocks to be applied to a single isolation point, enabling several workers to lock out a machine simultaneously.
Lockout Devices: Specialized devices such as circuit breaker lockouts, valve lockouts, and plug lockouts are used to isolate various energy sources, like electrical, pneumatic, and hydraulic systems.
Tags: Brightly colored, durable tags are labeled with warnings, instructions, and the names of the workers performing maintenance, alerting others to the lockout.
Tryout Tools: Multimeters or other testing devices verify that energy sources are indeed neutralized before work begins.
Personal Protective Equipment (PPE): Equipment such as gloves, eye protection, and hearing protection safeguard workers against any residual or accidental energy release.
LOTO Stations: These centralized boards or stations organize all LOTOTO tools and equipment, making them readily available and easy to locate.

4. Steps in the LOTOTO Procedure

A typical LOTOTO procedure involves the following steps:

1. Preparation

Identify the machinery or equipment that requires maintenance.
Review the specific energy control procedures, including energy sources (electrical, hydraulic, pneumatic) and their isolation points.

2. Notify Employees

Inform all affected workers of the impending lockout and why the machinery is being de-energized.

3. Shutdown

Power down the equipment according to standard shutdown procedures. This may involve turning off switches, pulling plugs, or deactivating control panels.

4. Isolate Energy Sources

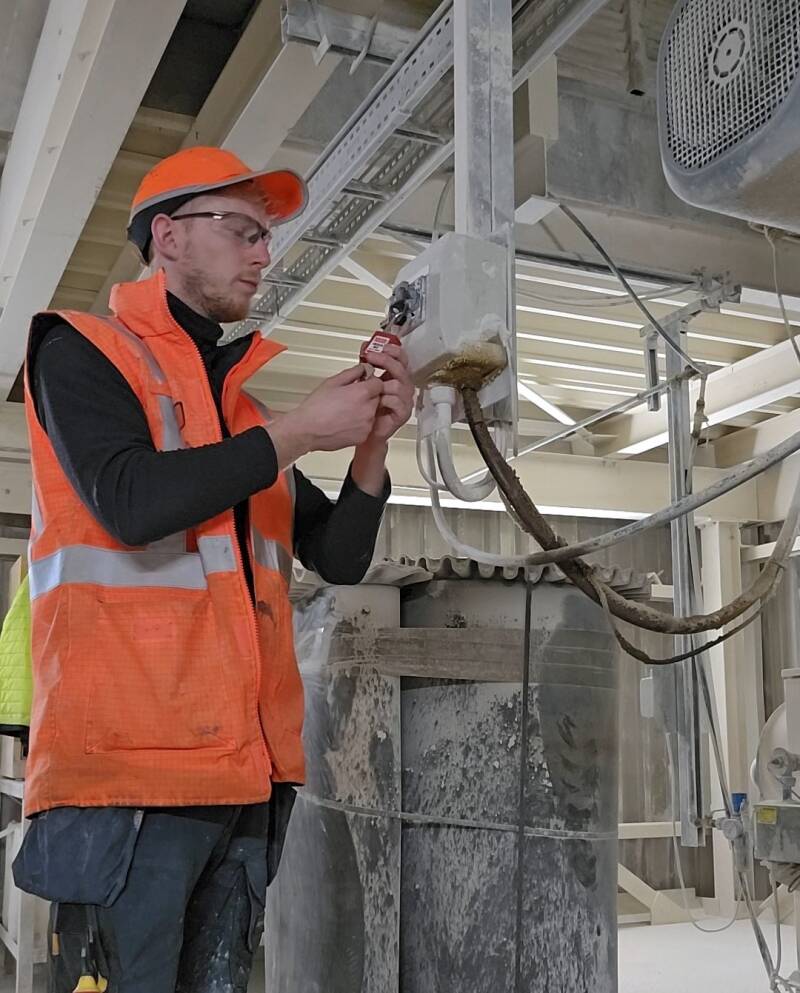

Use lockout devices on all isolation points, such as circuit breakers, valves, and disconnect switches, to prevent the machinery from receiving power.

5. Apply Locks and Tags

Apply personal locks and tags to each isolation point. Each worker must use their own lock and tag, ensuring that only they can unlock their respective isolation point.

6. Release Stored Energy

Relieve or block any residual energy sources (such as hydraulic or pneumatic pressure) to ensure they do not reactivate the machinery unexpectedly.

7. Tryout (Verification)

Attempt to start or activate the machinery (without actually turning it on) to confirm that it is completely isolated from its energy sources.
Use testing tools if necessary to ensure all energy sources have been neutralized.

8. Maintenance or Servicing

Once the machine is confirmed as fully de-energized, proceed with the necessary maintenance or repair work.

9. Remove Locks and Tags

After completing maintenance, each worker removes their own lock and tag. Only the individual who applied the lock can remove it, preventing unauthorized access.

10. Re-energize and Restart

After all workers have removed their locks and tags and cleared the area, the equipment can be re-energized according to established startup procedures.

5. Types of Hazardous Energy Controlled by LOTOTO

Electrical: Involves deactivating circuits, switches, and control panels.
Mechanical: Securing moving parts that may continue to rotate, move, or operate if not locked out.
Hydraulic and Pneumatic: Depressurizing systems to prevent dangerous fluid or air release.
Chemical: Blocking chemical flow to prevent exposure or chemical release.
Thermal: Ensuring equipment is cool and isolating any heat-generating energy sources.

6. Advantages of LOTOTO

Increased Safety: LOTOTO minimizes workplace injuries by preventing unexpected machinery startup or energy release.
Regulatory Compliance: LOTOTO procedures align with OSHA and other safety standards, protecting organizations from legal or regulatory penalties.
Efficient Maintenance: Provides a clear, structured approach to safely de-energize machinery, enabling smoother and safer maintenance tasks.
Tamper-Proof System: Personal locks and tags ensure that only authorized personnel can unlock and re-energize the equipment.
Customizable Protocols: LOTOTO systems can be adapted to different machinery types, making them flexible across various industries.

7. Disadvantages of LOTOTO

Time-Consuming: LOTOTO procedures can take time to implement, which may cause delays, especially for short, frequent tasks.
Potential for Human Error: Miscommunication or failure to follow procedures exactly can undermine LOTOTO effectiveness.
Upfront Costs: Initial setup, including purchasing locks, devices, and training, may represent a significant investment.
Training Requirements: Effective LOTOTO use depends on proper worker training, which requires both time and resources.
Tampering Risks: While LOTOTO is designed to be tamper-proof, determined personnel could potentially bypass the system without proper oversight.

8. Common Applications of LOTOTO

LOTOTO is widely used in industries where machines or processes pose significant risks during servicing. Key industries include:

Manufacturing: LOTOTO is essential for controlling machinery, such as presses, robotic arms, and assembly lines.
Oil and Gas: Lockout/tagout procedures prevent accidental release of hazardous chemicals, gases, or fluids.
Utilities and Energy: LOTOTO is used to control electrical and mechanical systems during maintenance in power plants.
Food Processing: Food processing equipment with moving parts, high temperatures, or pressurized systems often require LOTOTO procedures.
Mining: LOTOTO protects workers maintaining large, heavy equipment, like crushers and conveyors.
Chemical Processing: LOTOTO safeguards workers in plants with dangerous chemicals and pressurized systems.
